Tower crane ZTT86X 6 ton Introduction

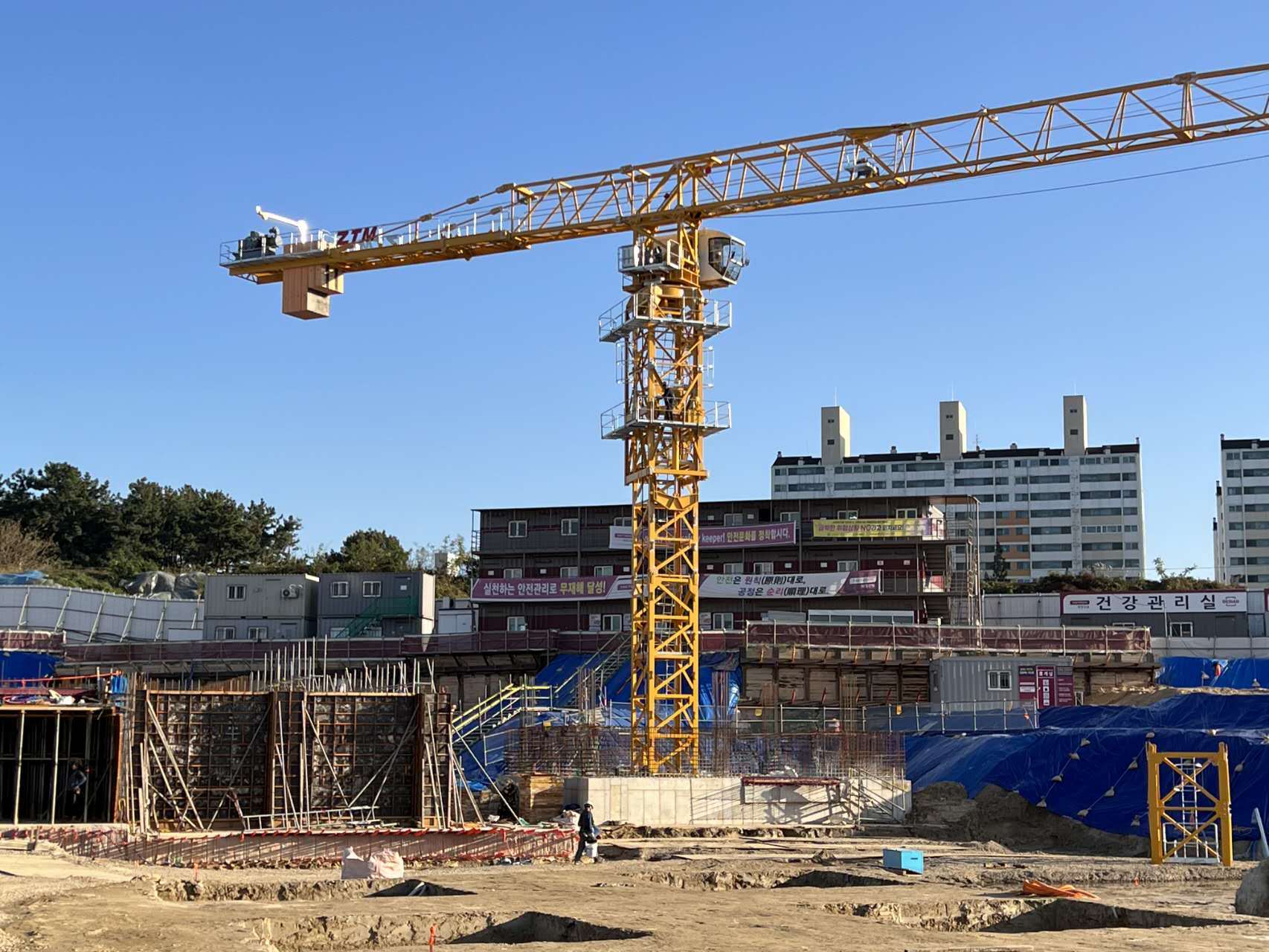

ZTT86X 6ton(5612) Flattop Tower crane
Our Strengths
Our construction crane structures adhere strictly to European standards.
The slewing platform employs a multi-layer, multi-pass welding process to prevent cracking.
The hoisting jib features a quick-assembly design, facilitating easy installation and disassembly.
Boom sections can be adjusted in the air whenever needed.
All booms undergo pre-installation and testing prior to factory shipment, ensuring straightness and proper upward horizontal inclination.
Mechanisms Specification
| Mechanism (ZTT86 6T) | 2Fall | 4Fall | Drum capacity | Motor | ||||
| m/min | t | m/min | t | KW | ||||
| Hoisting | 6T | 30LVF15 | 0-40 0-80 | 3.0 1.5 | 0-20 0-40 | 6.0 3.0 | 440m | 24 |
| Trolleying | BP4065XZT | 0-58 m/min | 4.0 | |||||
| Slewing | RVF4.0 | 0-0.7rpm | 2*4.0 | |||||
| Travelling | RT | 12.5-25 m/min | 2*2.6/5.2 | |||||
| Pressure | KVA | |||||||
| 380V(±10%) 50HZ | 48 | |||||||
Company Video
We welcome customers at home and abroad to visit our factory to reach long-term cooperation and create success together.
FAQ
What is the main use of a tower crane?
Tower cranes are mainly used in high-rise construction, especially when there is a need to vertically lift heavy loads or large components. They provide an efficient lifting solution on construction sites.
What is the working principle of a tower crane?
A tower crane operates with a rotating mast and jib. It lifts heavy objects using a hook powered by an electric motor, with steel cables that carry the load during lifting operations.
What are the main safety measures for tower cranes?
Safety measures for tower cranes include regular inspections and maintenance, operator training, overload prevention systems, and the installation of limit devices.
What is the lifting capacity of a tower crane?
The lifting capacity of a tower crane depends on the model and configuration, typically ranging from several tons to several hundred tons.
Are tower cranes suitable for all construction projects?
Tower cranes are primarily used for high-rise buildings and large-scale construction projects. They may not be suitable for low-rise buildings or smaller projects.
What is the typical rental cost for a tower crane?
The rental cost of a tower crane varies depending on the crane's specifications, rental duration, and location, typically ranging from several thousand to tens of thousands of RMB.
ZTT86X Flat-Top Tower Crane 6t Capacity 56m Jib Length 1.2t Tip Load Hoisting Equipment
Product Model：
- Commodity name： ZTT86X Flat-Top Tower Crane 6t Capacity 56m Jib Length 1.2t Tip Load Hoisting Equipment
- Max. hoisting capacity： 6
- Max. hoisting capacity at jib end： 1.2
- Max. boom length： 56
- Max. free standing height： 51
- Max. jib Length： 56
- Tip Load： 1.2
- Independent height (m)： 51

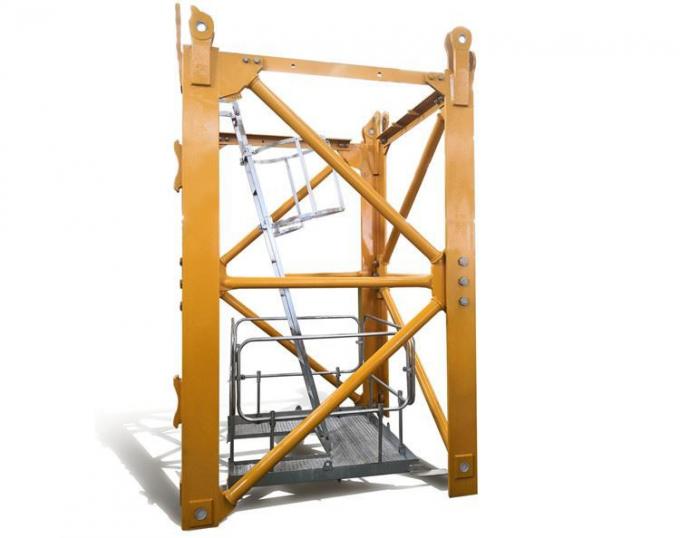

- Standard section configuration： ZL46
