Product introduction

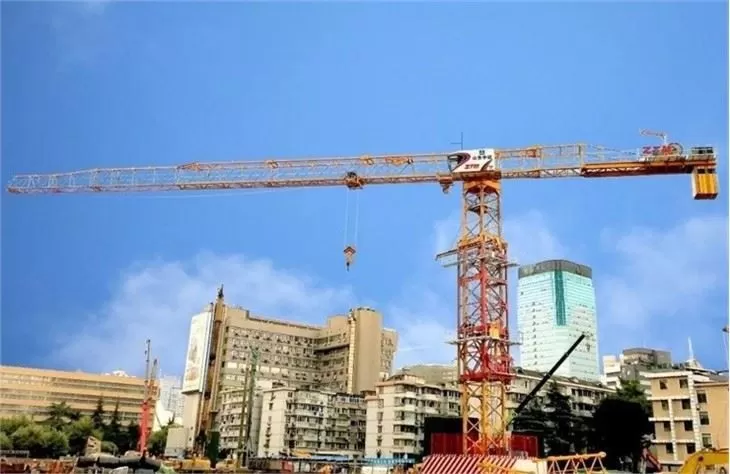

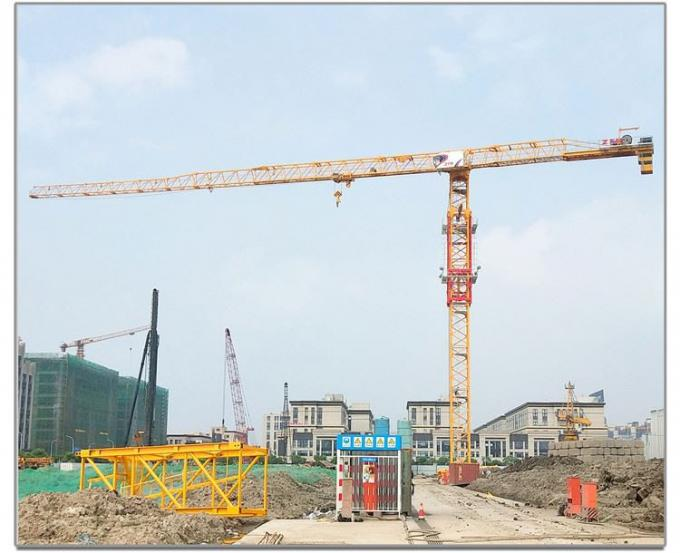

ZTT156(ZTT6513)is the main type of ZTM intelligent construction tower crane . It has a max load of 8t, a tip load of 1.3t, a jib radius of 65m, and an independent height of 60m.
| Model NO. | ZTT156(6513) | Origin | Jiangxi,China |
| Brand | ZTM | Application | Construction Usage |
| Max. Load | 8 ton | Independent height | 40.5/45/46m |
| Jib Length | 65m | Sling type | Wire rope |
| Max.Jib -end Load | 1.3 ton | Certification | CE,ISO9001 |
| Mast Section | L46A1 (1.6*1.6*3m) | Moving Type | Fixed |
| Main Material | Q345b；Q355b Steel | Installation | Assembled |
Main Included parts

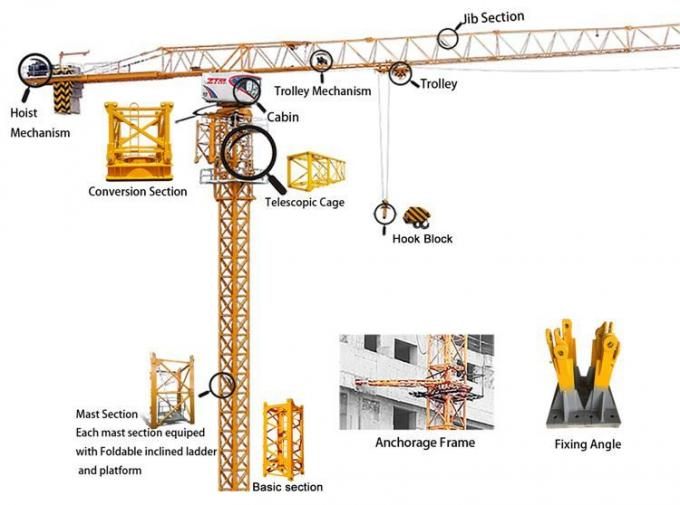

MODEL: ZTT156 (ZTT6513-8) 1)1 Set Hoisting Mechanism (GUIDE Inverter) 2)Hoist Wire Rope, 14mm / 500m 3)1 Set Trolley Mechanism (GUIDE Inverter) 4)Trolley Wire Rope, 9mm / (121m + 72m) 5)1 Set Slewing Mechanism (GUIDE Inverter) 6)1 Set Slewing Table 7)1 Set Jib 65M 8)1 Set Counter Jib (The ballast are excluded) 9)12 Sets L46A1 Mast 1.6x1.6x3 m 10)1 Sets Strengthen Base Mast 1.6x1.6x7.5 m 11)1 Set Fixing Angle 12)1 Unit Cabin (Size: 3x1.2 x 2.1) With Air Conditioner 13)Complete Set Electrical Control System 14)Full Set of Accessories (Monitor Display Included) 15)Power Cable, 3x25 + 2x10, 85m 16)Power Supply, 380V/50Hz

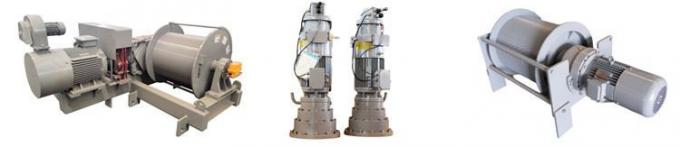

Mechanisms Specifications
| Mechanism (ZTT156 8T) | 2Fall | 4Fall | Drum capacity | Motor | ||||
| m/min | t | m/min | t | KW | ||||
| Hoisting | 6T | 40LVF20 | 0-40 0-58 0-80 | 4.0 2.5 1.5 | 0-20 0-29 0-40 | 8.0 5.0 3.0 | 440m* ＞440m | 30 |
| Trolleying | BP4065XZT | 0-58 m/min | 4.0 | |||||

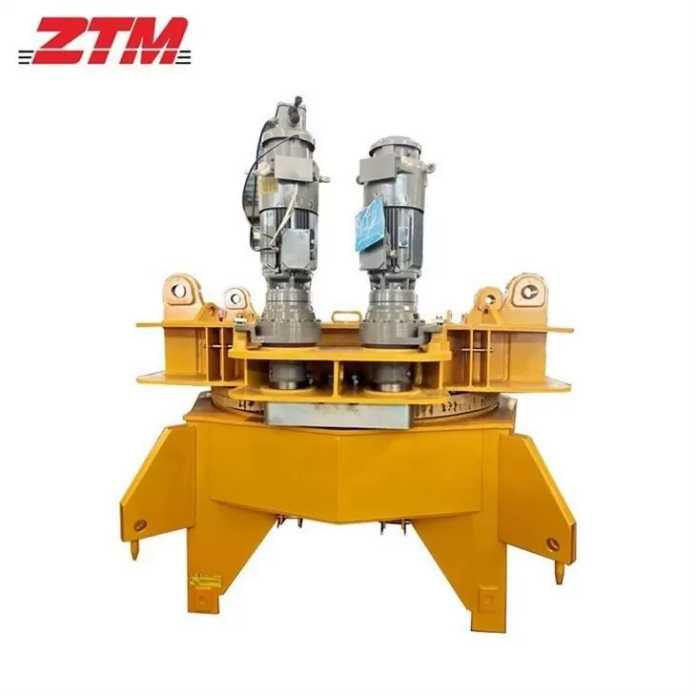

| Slewing | RVF5.5 | 0-0.7rpm | 2*5.5 | |||||
| Travelling | RT | 12.5-25 m/min | 2*2.6/5.2 | |||||
| Pressure | KVA | |||||||
| 380V(±10%) 50HZ | 40LVF20:60 | |||||||
Our Advantage

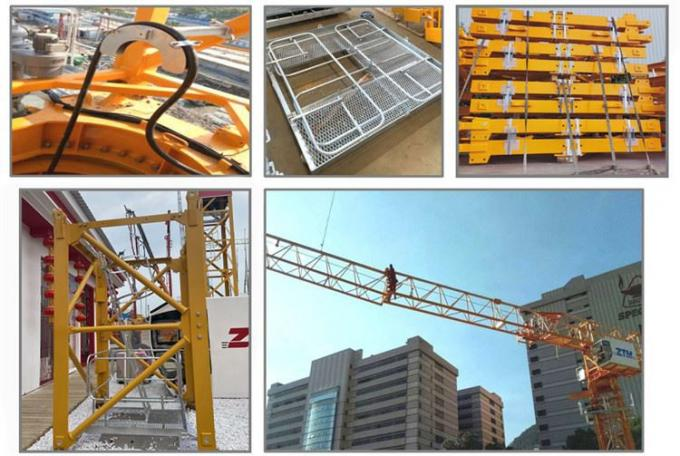

● The mast section equipped with inclined ladder and hot galvanized rest platform per 3 meters,Safe in every individual step .

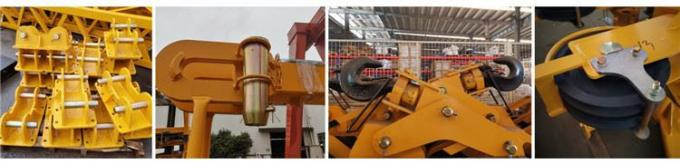

● The trolley is our patented product ,designed with light weight ,along with high quality cast nylon pulley,the pin is designed for easy replacement of bearing and pulley , very easy to carry out maintenance and repair .
● THREE LVF RANGE of mechanism advantage, Speed-adjusting technology, stepless speed regulation of the three mechanisms which helps reduce impact ,smoother movement ,fast reaction ,exceptionally accurate control .

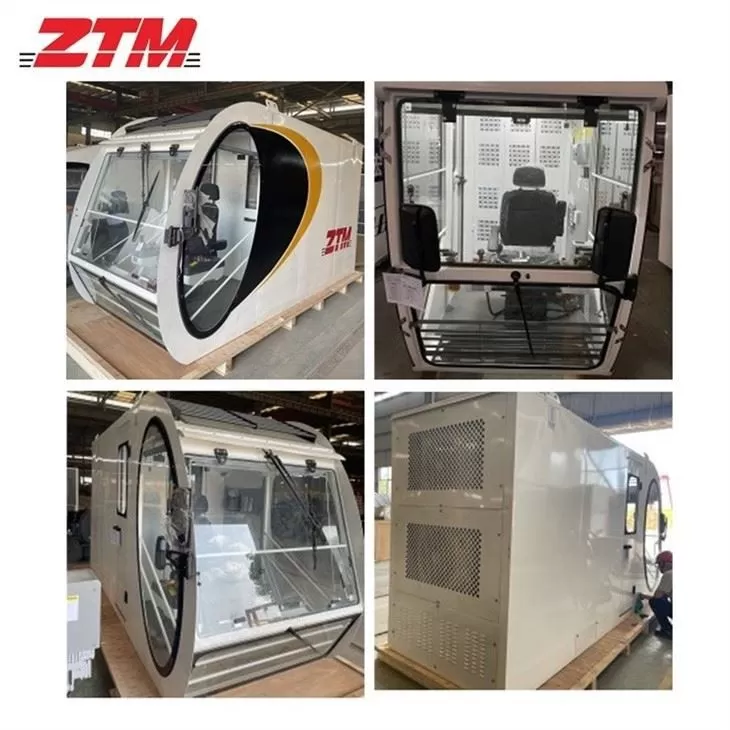

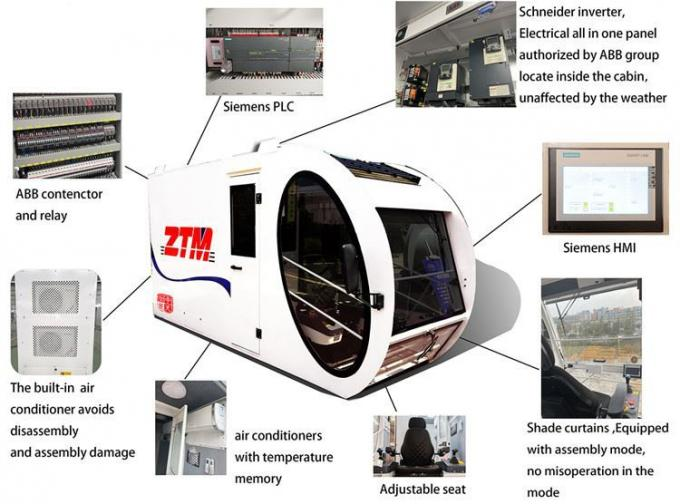

● The environment of the tower crane cab is comfortable, and the closed environment of constant temperature and humidity can increase the service life of electrical components and ensure the safe operation of the tower crane. The built-in air conditioner improves the service life of the air conditioner and simplifies the installation process. Equipped with a temperature sensor to avoid the danger of fire and ensure the safe operation of the electrical system.
Product details

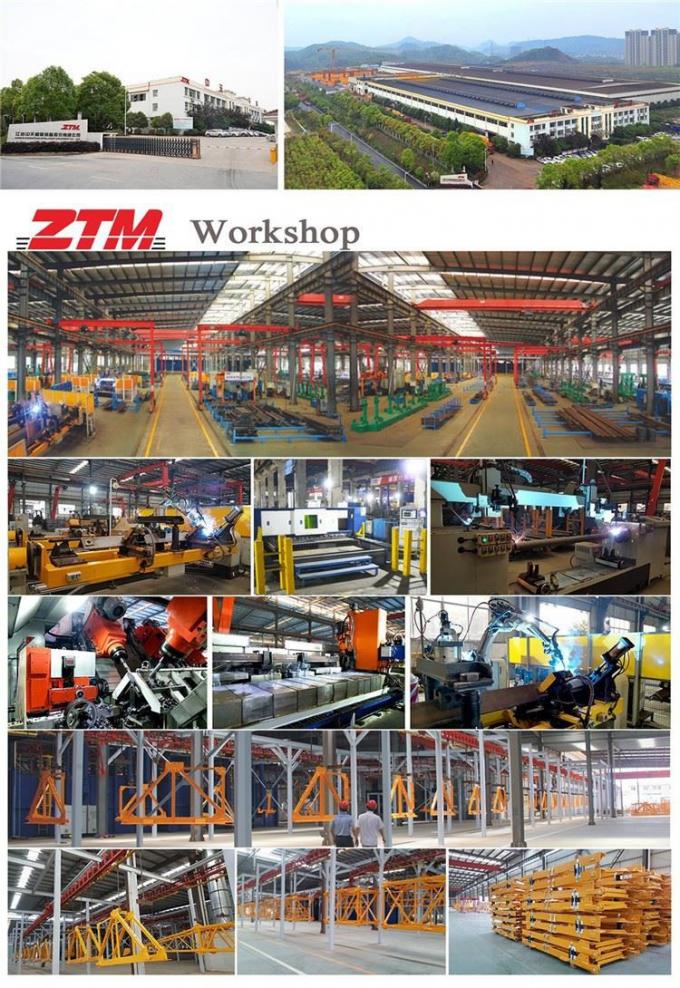

ZTM is a professional manufacturer of construction crane equipment in my country. Founded in 2003, the company specializes in the development and manufacturing of tower cranes and construction hoists. Its products include flat-head series (ZTT), boom series (ZTL) and roof crane series (ZTD) tower cranes and SC construction hoists.
Why choose us?
1. We are a traditional tower crane and construction hoist manufacturer, our customers are all over the world, and we are a professional team. high quality can be depended.
2. Our regular hot selling models are available in stock, welcome to order.
3. ZTM's tower crane components are highly versatile. The same component can be used for multiple models of tower cranes, and some components can be interchanged with POTAIN company tower crane components.
Company Video
We welcome customers at home and abroad to visit our factory to reach long-term cooperation and create success together.
FAQ
What is the main use of a tower crane?
Tower cranes are mainly used in high-rise construction, especially when there is a need to vertically lift heavy loads or large components. They provide an efficient lifting solution on construction sites.
What is the working principle of a tower crane?
A tower crane operates with a rotating mast and jib. It lifts heavy objects using a hook powered by an electric motor, with steel cables that carry the load during lifting operations.
What are the main safety measures for tower cranes?
Safety measures for tower cranes include regular inspections and maintenance, operator training, overload prevention systems, and the installation of limit devices.
What is the lifting capacity of a tower crane?
The lifting capacity of a tower crane depends on the model and configuration, typically ranging from several tons to several hundred tons.
Are tower cranes suitable for all construction projects?
Tower cranes are primarily used for high-rise buildings and large-scale construction projects. They may not be suitable for low-rise buildings or smaller projects.
What is the typical rental cost for a tower crane?
The rental cost of a tower crane varies depending on the crane's specifications, rental duration, and location, typically ranging from several thousand to tens of thousands of RMB.
