Product introduction

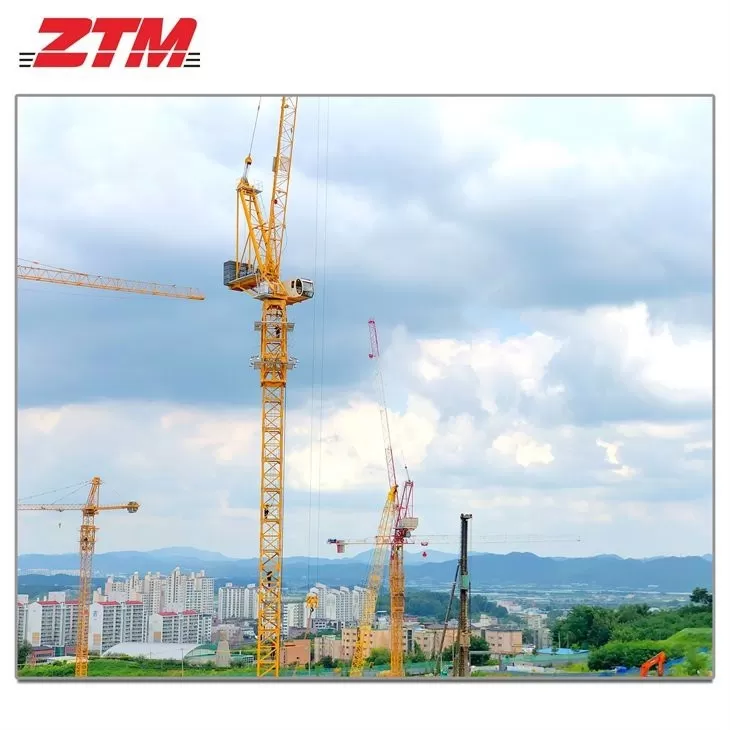

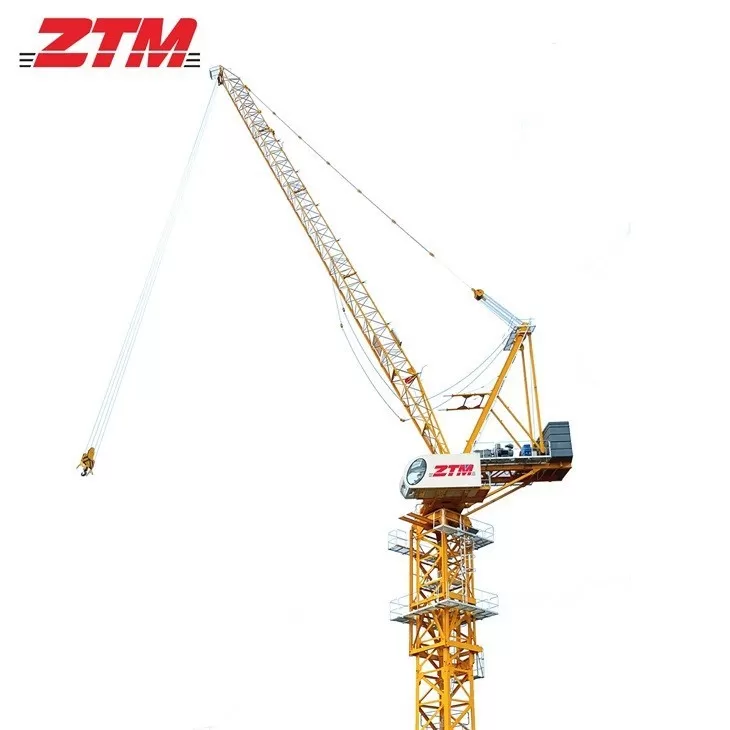

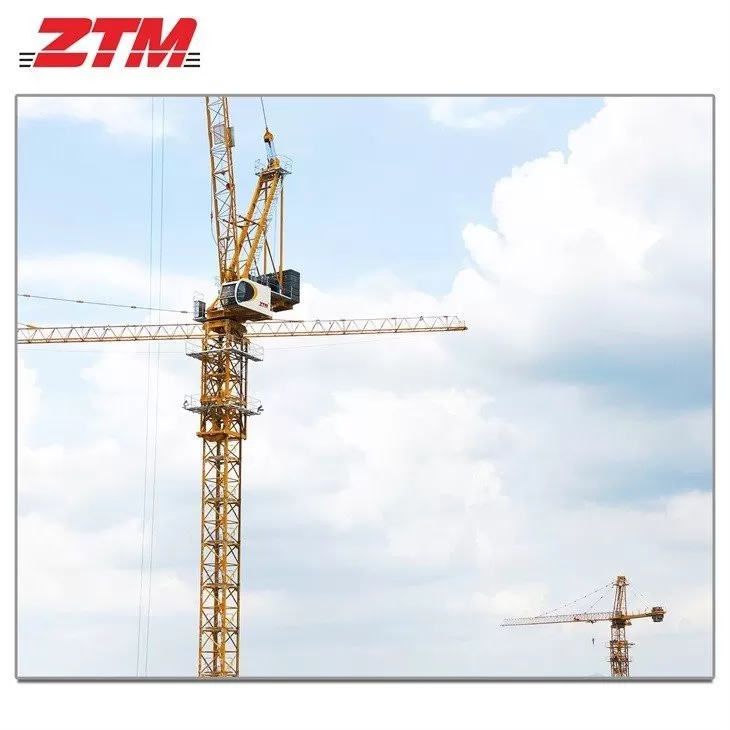

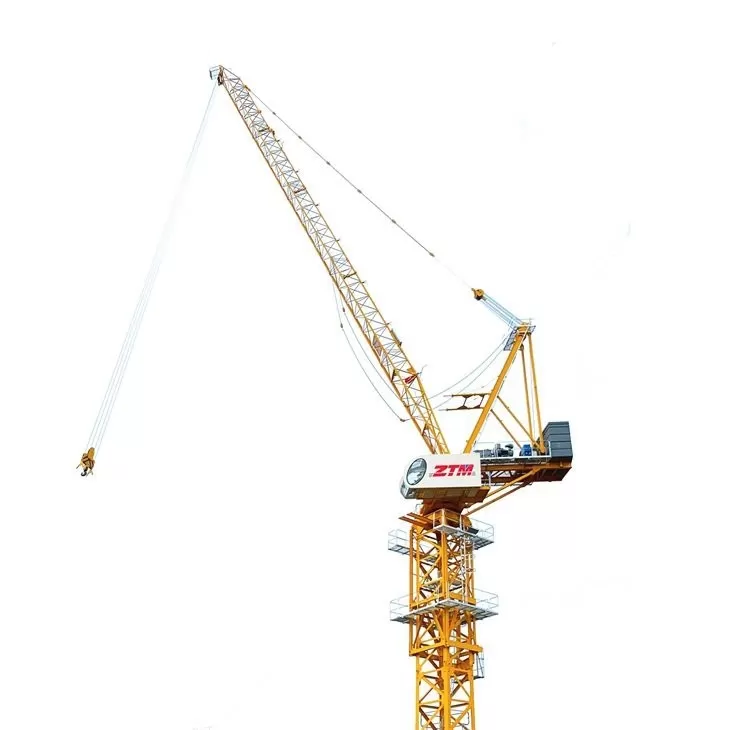

ZTL126 6T Luffing Cranes Overviews
Quick Detail:
- Max capacity: 6t
- Max tip capacity: 1.5t
- Max free-standing height: 34.7m
- Max boom jib length (radius): 45m
- Mast Section: L46
Luffing crane,this series offers the most competitive solution while working in confined spaces whether due to space limitations of the construction site itself or into adjacent neighboring properties ,peak performance in small spaces .

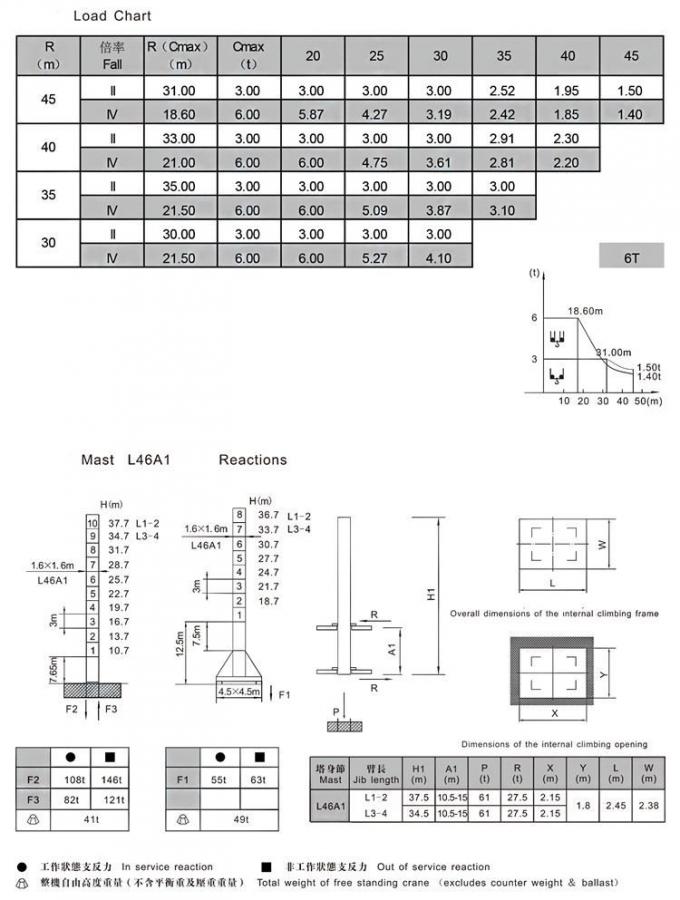

Technical parameter
| Model | ZTL126 Luffing Crane |
| Max Load | 6t |
| Tip load | 1.5 t @45m |
| Jib length | 45m |
| Hoist height | according to your demand |
| Lift speed |
a=2:0-80 a=4:0-40 |
| Lift Motor Power | 22kw |
| Slewing speed | 0-0.7 r/min |
| Slewing Motor Power | 2*4.0kw |
| Derricking Speed | 3.2min |
| Luffing Motor Power | 22kw |
| Mast Size | 1.6*1.6*3m |
| Standard Height | 34.7m |
Advantages of ZTL126 luffing cranes
1. It is very convenient to mount and demount. The power unit, hoisting, and luffing mechanism are installed on the turntable, which has reduced the requirements for installation.

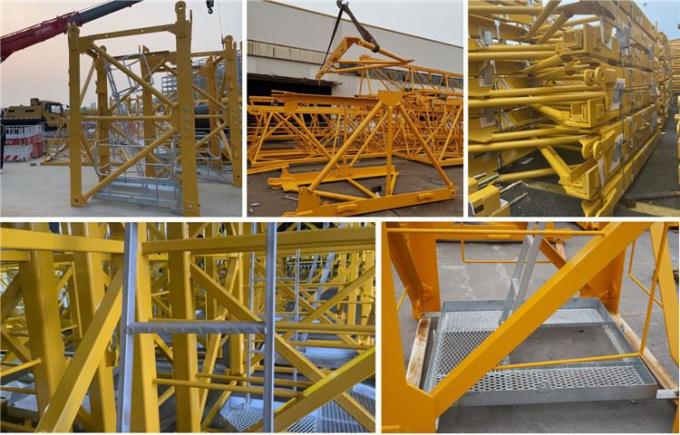

2. Potain L46A1 split type mast section, size:1.6*1.6*3m. Each mast section is equipped with an inclined ladder and a galvanized rest platform.

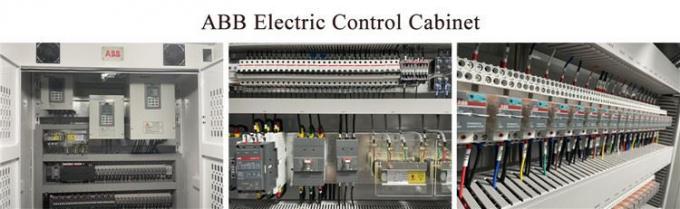

Electrical control system
Using PLC control, the electrical control system has better reliability and safety. Produced by a professional manufacturer with advanced technology abroad, the service life of electrical components is 3-4 times longer than that of domestic products, with fewer failures, convenient maintenance and repair, and reliable operation.

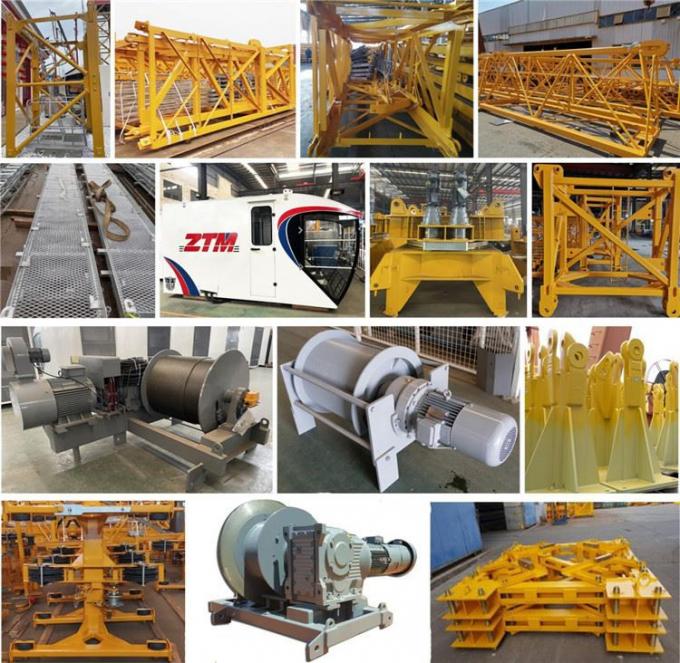

Luffing crane parts
Other luffing tower crane model
| Model | Max. load(t) | Max.Jib -end Load (t) | Max. Jib Length(m) | Free standing height(m) | Mast section size |
| ZTL126 | 6 | 1.5 | 45 | 34.7 | L46A1 |
| ZTL146 | 6/8 | 1.3 | 50 | 25.7/46.7 | LA6A1/L68Al |
| ZTL186 | 8/10 | 1.8 | 50 | 37.7 | L68A1 |
| ZTL286 | 16 | 2.2 | 55 | 40.7 | L68B3 |
| ZTL326 | 14 | 2.7 | 55 | 42.2 | L69B3 |
| ZTL346 | 18 | 2.4 | 60 | 30.2/48.4 | L69B3/ZH205 |
| ZTL376 | 20 | 2.8 | 60 | 36.2 | L69B3 |
| ZTL466 | 25 | 4.7 | 60 | 48.4 | ZH205 |
| ZTL546 | 24 | 6.2 | 60 | 42 | ZH205 |
| ZTL756 | 32/50 | 9.5 | 60 | 51.7/54.5 | ZL25/ZH206 |

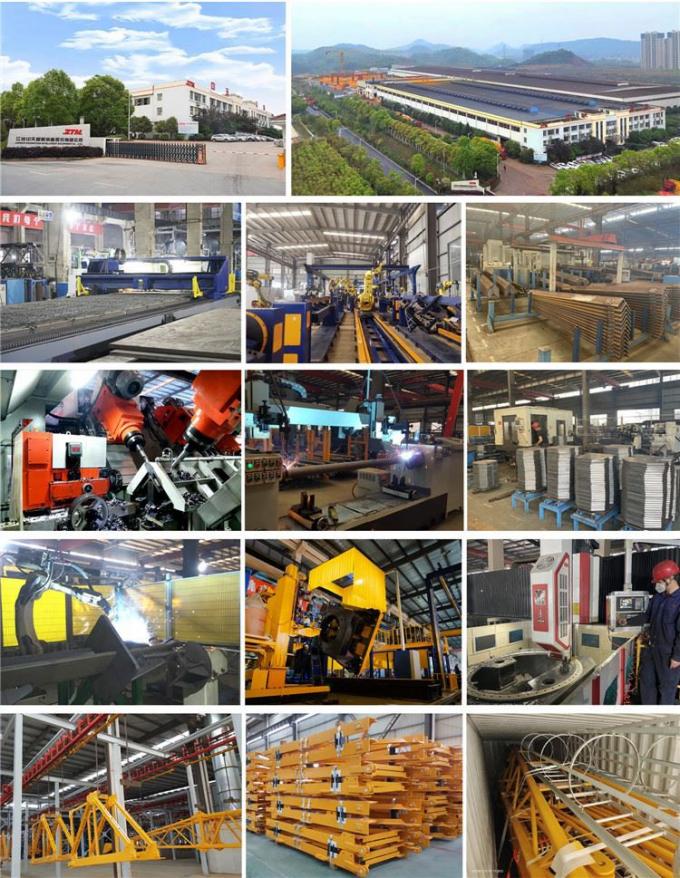

ZTM company
Jiangxi Zhongtian Intelligent Equipment Co., Ltd. (ZTM) was established in 2003 and has modern assembly lines and complete lifting machinery manufacturing equipment. Strong technical force, sophisticated production equipment, advanced technology and complete testing methods.

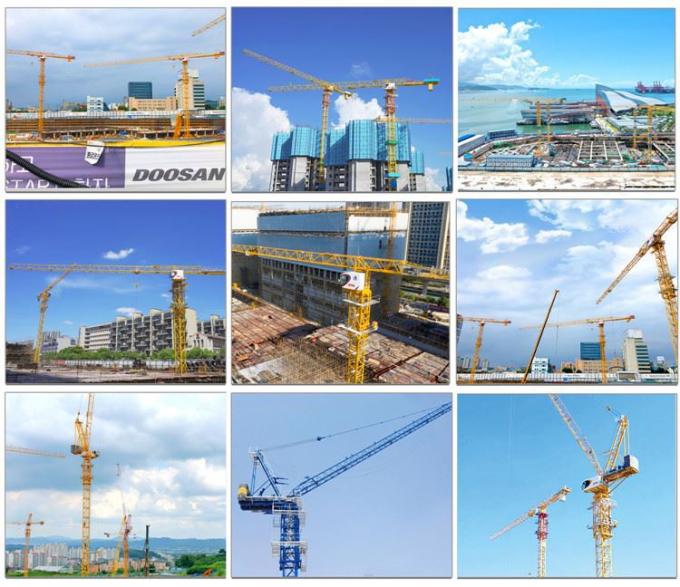

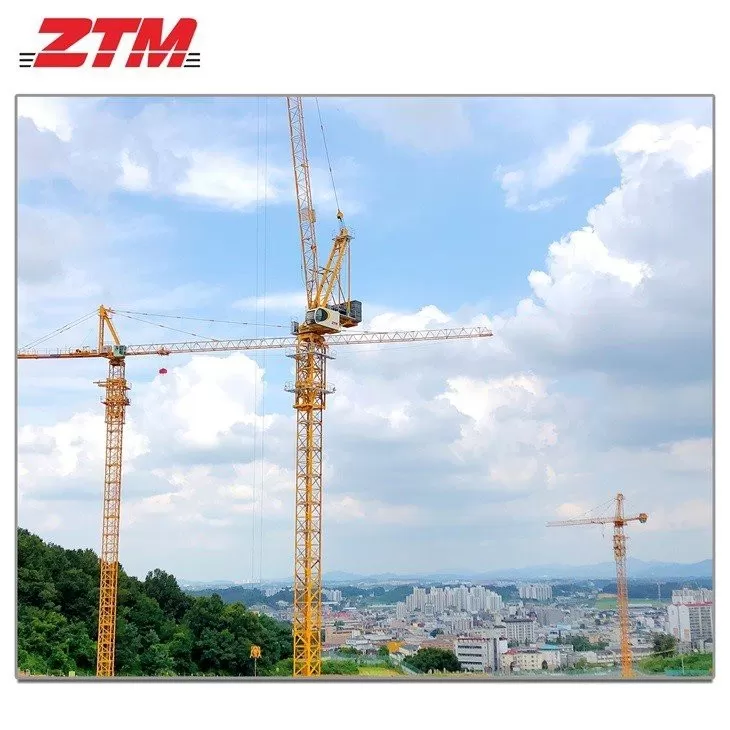

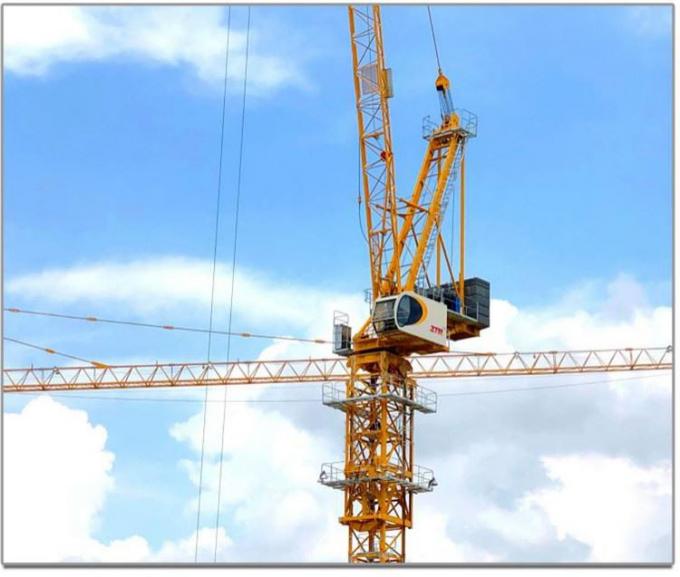

ZTM tower crane showcase

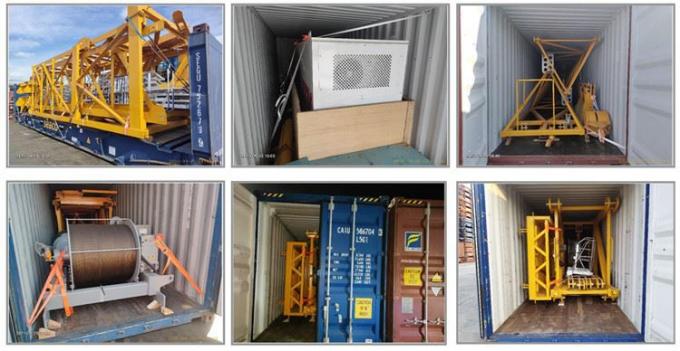

Packaging and shipping
Company Video
We welcome customers at home and abroad to visit our factory to reach long-term cooperation and create success together.
FAQ
What is the main use of a tower crane?
Tower cranes are mainly used in high-rise construction, especially when there is a need to vertically lift heavy loads or large components. They provide an efficient lifting solution on construction sites.
What is the working principle of a tower crane?
A tower crane operates with a rotating mast and jib. It lifts heavy objects using a hook powered by an electric motor, with steel cables that carry the load during lifting operations.
What are the main safety measures for tower cranes?
Safety measures for tower cranes include regular inspections and maintenance, operator training, overload prevention systems, and the installation of limit devices.
What is the lifting capacity of a tower crane?
The lifting capacity of a tower crane depends on the model and configuration, typically ranging from several tons to several hundred tons.
Are tower cranes suitable for all construction projects?
Tower cranes are primarily used for high-rise buildings and large-scale construction projects. They may not be suitable for low-rise buildings or smaller projects.
What is the typical rental cost for a tower crane?
The rental cost of a tower crane varies depending on the crane's specifications, rental duration, and location, typically ranging from several thousand to tens of thousands of RMB.
